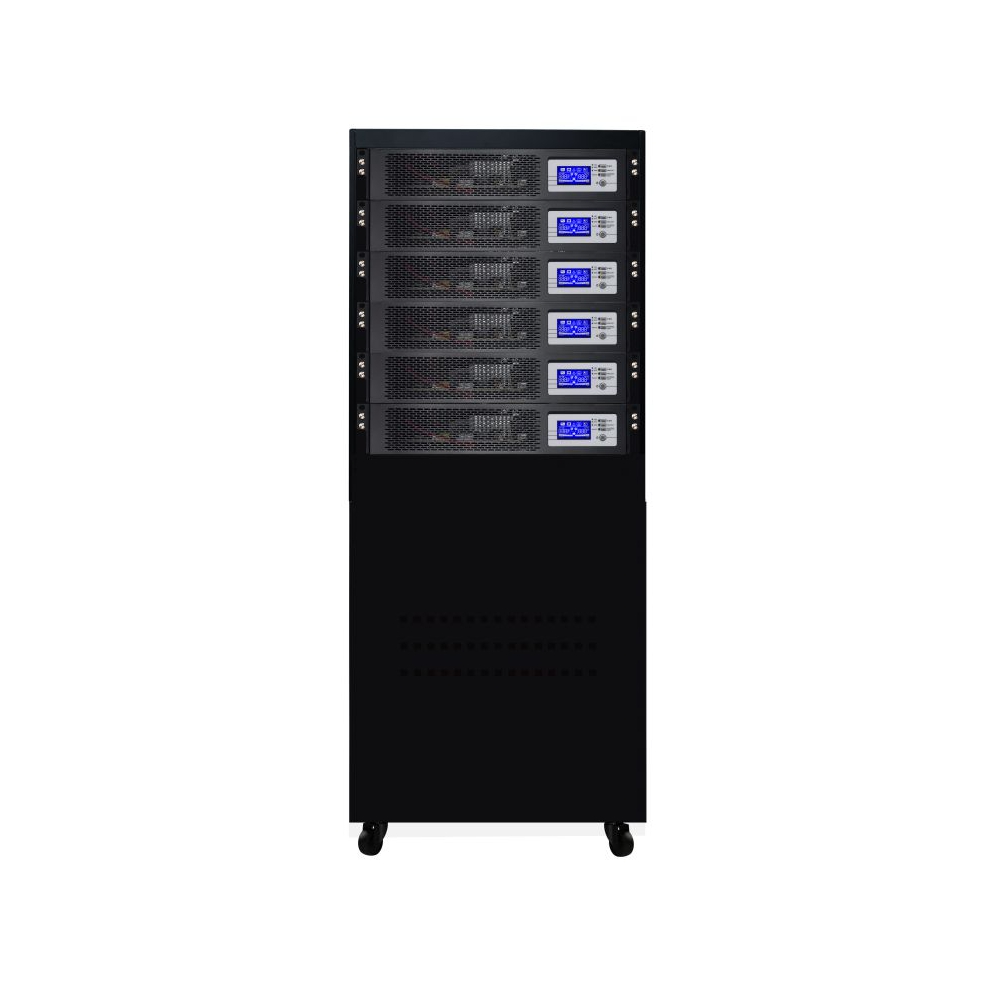

MODEL

EPS 5kw

RATED POWER

5000VA/5000W

INPUT

Voltage

220/230/240 VAC

Voltage Range

170-255 VAC

Frequency Range

50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)

220/230/240VAC ± 5%

Surge Power for 5 seconds

10000VA

Efficiency (Peak)

93%

Transfer Time

< 10 ms

Waveform (Batt. Mode)

Pure sine wave

BATTERY

Battery Voltage

48 VDC

CC/CV Charge Voltage

56.4 VDC

Floating Charge Voltage

53.6 VDC

Overcharge Protection

60 VDC

AC CHARGER

Maximum AC Charge Current (Adjustable)

2.5~60 A

Charging modes

3 steps for CC, CF and Floating

SOLAR CHARGER (option)

Maximum PV Array Power

4000W

MPPT Range @ Operating Voltage

60 VDC ~ 115 VDC

Maximum PV Array Open Circuit Voltage

145 VDC

Maximum Solar Charge Current

80 A

PARALLEL

Maximum Parallel units

Up to 9 units

Parallel Type

Single Phase or Three Phase

Transfer Time in Parallel Mode

<40ms

PHYSICAL

Dimension, D x W x H (mm)

400 x 438 x 88 (2U)

Net Weight (kgs)

9.1

INTERFACE

Communication

Modbus RS-485

Dry Contact

Deliver signal to external device such as generator

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operating Temperature

0°C to 40°C

Storage Temperature

-15°C to 60°C
